- MEC series electric induction motor, S1 continuous duty with thermal protection integrated on the windings.Motor with high efficiency, therefore, with high performance and lower power consumption. Elastic coupling.
- Inline professional Mazzoni pump (with connecting rods), brass head and three ceramic pistons.(on demand Interpump pump)
- Electric cable 5 mt.
- 10 m high pressure hose.
- 30 L water tank with double float.
- Automatic Bypass valve for pressure regulation
- Safety valve for overpressure
- Indicators of control voltage and fuel reserve
- 1,5 lt Softener tank
- Stainless steel lance with automatic Gun and swivel.
- Head with nozzle in hardened steel and detergent suction in high pressure
- Painted steel frame and stainless steel cover.
- Diesel boiler with stainless steel coil and steel pipe with burner block in case of lack of water.
- Fan with independent motor
- Thermostat for water temperature control
- anti-seize diesel pump
- Float for fuel level control.
- TST/DSS systems (or TVS system on demand)
- Detergent tank of 5 L
- Diesel tank of 25 L
- Hour counting Display
- Parking brake
- Flame control

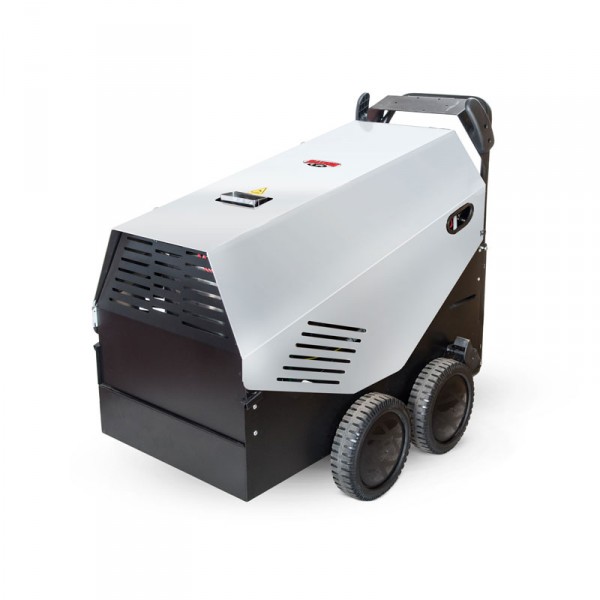

The machine is built to be used in the workplace extremely professional. The steel frame and cover in stainless steel making it extremely sturdy and anti corrosive. Electric motor with elastic coupling and thermal protection, high efficiency boiler and low power consumption with exhaust gas emissions well below the limits set by EU rules.
Recommended Use: Agriculture, machine shops, metal industry, transportation and shipyards etc.
|HP (kW)||7,5 (5,5)||10 (7,5)||15 (11)|
|Volts (Hz)||400 – 3 (50)||400 – 3 (50)||400 – 3 (50)|
