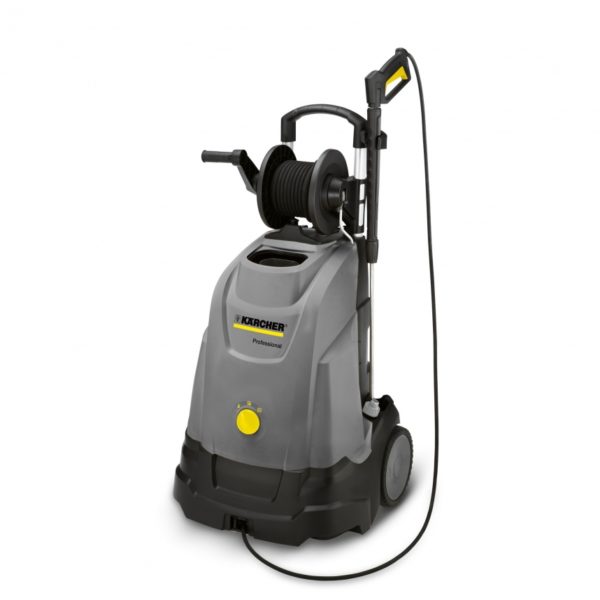

Karcher HDS 5/11 UX Hot Water Steam & Pressure Washer

£1,370.00 £1,370.00 inc VAT

Entry-level, highly portable hot water pressure cleaner with integrated hose reel. PLEASE CALL US ON 01473 636663 TO CHECK OUR CURRENT OFFERS ON THIS UNIT!


The HDS 5/11 U is a compact hot water pressure washer which features a 3-piston axial pump, air-cooled 2-pole electric motor and a 15m hose with integrated hose reel. The machine allows for easy transportation and storage thanks to its low weight, compact upright design and large diameter wheels, and is small enough to be transported in a typical estate car. . With simple OFF-COLD-HOT operation, the 5/11 U is the perfect machine for light-medium duty cleaning tasks where time is of the essence.
Features and benefits
High pressure washer HDS 5/11 UX: Integrated hose reel
Integrated hose reel
Convenient, secure pressure hose storage. Ensures ergonomic operation. Reduced set-up times.
High pressure washer HDS 5/11 UX: Fine-mesh water filter
Fine-mesh water filter
Efficiently protects high-pressure pump against contamination. Easy to remove from outside.
High pressure washer HDS 5/11 UX: Innovative upright design
Innovative upright design
Effortless transport over landings or stairs. Large wheels for unpaved surfaces.
Compact design

Space-saving storage and transport.
Spill-proof pump and fuel tank for transport lying down.
Ideal for small service vehicles.

Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks.

At last – work without getting tired: the EASY!Force high-pressure gun.
EASY!Lock quick-release locks: durable and robust. And five times faster than screws.

Technical data
Current type (Ph/V/Hz) 1 / 230 – 240 / 50
Flow rate (l/h) 450
Operating pressure (bar/MPa) 110 – 110 / 11 – 11
Max. temperature (°C) max. 80
Power rating (kW) 2.2
Consumption fuel oil (kg/h) 2.4
Fuel tank (l) 6.5
Weight (with accessories) (kg) 67.4
Weight incl. packaging (kg) 76.6
Dimensions (L x W x H) (mm) 618 x 1163 x 994

Trigger gun, EASY!Force Advanced
High-pressure hose, 15 m
Spray lance, 840 mm
Integral high-pressure hose reel
Pressure switch control



Technical data

Current type (Ph)1 – 230 – 240 – 50
Flow rate (l/h)450
Operating pressure (bar/MPa)110 – 110 / 11 – 11
Max. temperature (°C)max. 80
Power rating (kW)2.2
Consumption fuel oil (kg/h)2.4
Fuel tank (l)6.5
Weight (kg)70
Dimensions (L x W x H) (mm)620 x 620 x 1160


  • Trigger gun, Extended high-pressure trigger gun
  • High-pressure hose, 15 m
  • Spray lance, 550 mm
  • Integral high-pressure hose reel
  • Anti-twist system (AVS)
  • Pressure switch control
