Description

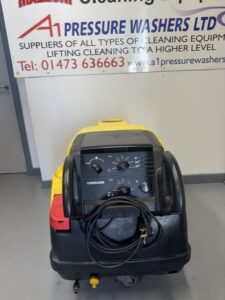

Very clean tidy machine
Product Description

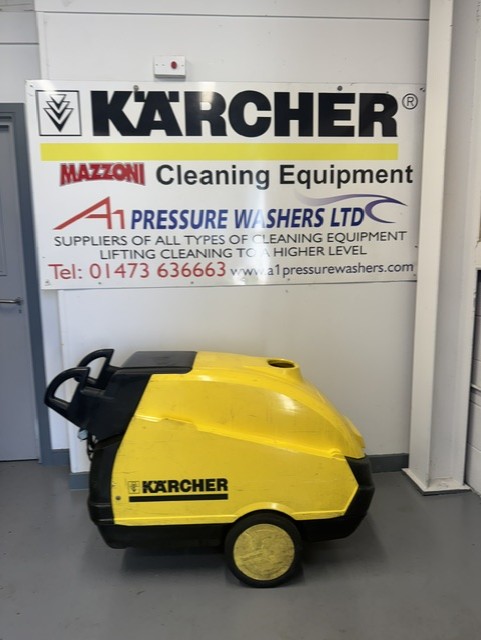

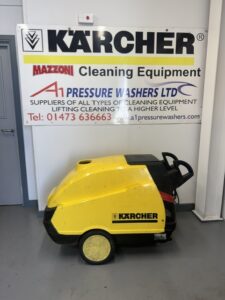

HDS 745-4 M Eco (240V)
A medium class Hot Water High-Pressure
Cleaner.
The HDS 745-4 M Eco is a medium class 4 pole machine that combines innovative engineering with user
convenience, economy and a long service life even under demanding cleaning conditions. It is packed with
features such as the rear control panel that enables all the indicators to be read easily, Easy press trigger gun,
high performance burner with low emissions and the soft dampening system (SDS) that reduces vibrations thus
extending the life of the machine. Ideal for businesses needing to remove grease or heavy dirt.
• 4 pole, water cooled electric motor.
• 3 piston axial pump with ceramic pistons.
• LED indicators show the status of the most important machine functions.
• Pivoting 1050mm stainless steel spray lance.
• Tanks for detergent, scale inhibitor and fuel can be filled from outside.
• Easy press trigger gun can be held and used with
greatly reduced effort.
• Low fuel cut-out facility.
• Motor protection switch to protect against overload.
• Flue gas temperature limiter switches off the
drive motor if the flue gas exceeds 300ºC.
Standard Accessories
• 10m High-Pressure hose
• 1050mm Spray lance
• Power nozzle
Technical data HDS 745-4 M (240v)
Power supply (~/V/Hz) 1/240/50
Water flow rate (l/h) 350-700
Pressure (mbar/MPa) 30-90
Max. temperature (ºC) 155/80
Connected load (kW) 3.2
Consumption, fuel oil (kg/h) 4.3
Fuel/Detergent tank (l) 25/20
Weight (kg) 130
Dimensions (L x W x H) (mm) 1285 x 690 x 835
|
